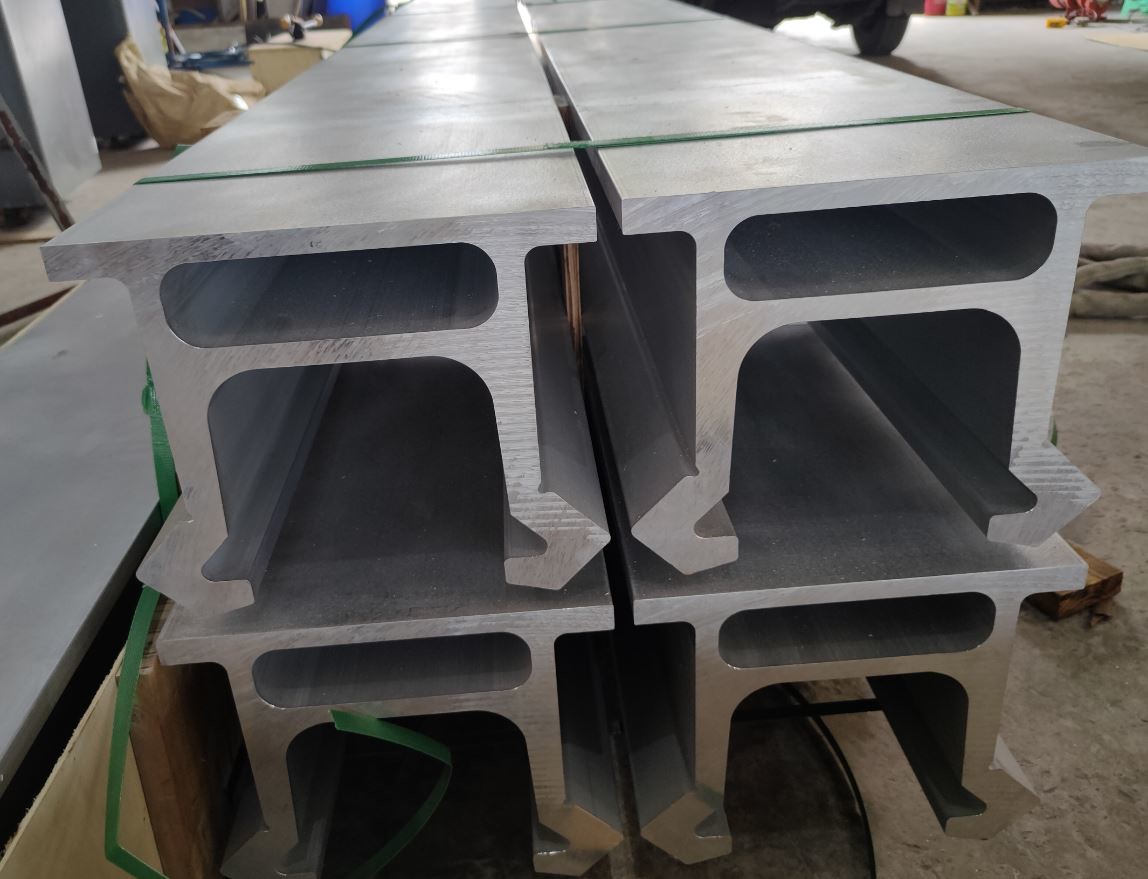

3100MM BMH200 Feed Beam Profiles SIMBA H1354 Aluminum Feed Beam Extruded Profiles

(1) INTRODUCTION

BMH200 series heavy-duty aluminum alloy hydraulic feeds with double bottom for high torional resistance, equipped with the stainless steel slide bar to produce the feed beams feed rails from damage, this make the feed beams have long life and low maintenance cost.

The feeds BMH 200 series have difference length, the length we have as below:

BMH214, BMH215, BMH216, BMH235 and BMH236, BMH244, BMH245, BMH246

BMH200 series feed beams are equipped on Long-Hole Drill Rigs, The Simba H1254, H1354, E6, E7, L6C, M3C, M4C, M6, M7C.

Feed beam for the Epiroc /Atlas Copco Simba H1253 Simba H1254

3128 0030 58 Feed beam,BMH200 ,200 Series,Part number: 3128003058

Feed beam for the Epiroc /Atlas Copco Simba H1254

Feed beam for the Epiroc /Atlas Copco Simba H1354

3128 3043 32 -Feed beam,BMH200 ,200 Series,Part number: 3128304332

3128 0030 28 -Feed beam,BMH200 ,200 Series,Part number: 3128003028

(2) SPEFICIATIONS

1. Material: Aluminum Alloy 7020 With Heat Treatment T6
2. Compliant with Standard of GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 32kgs/meter

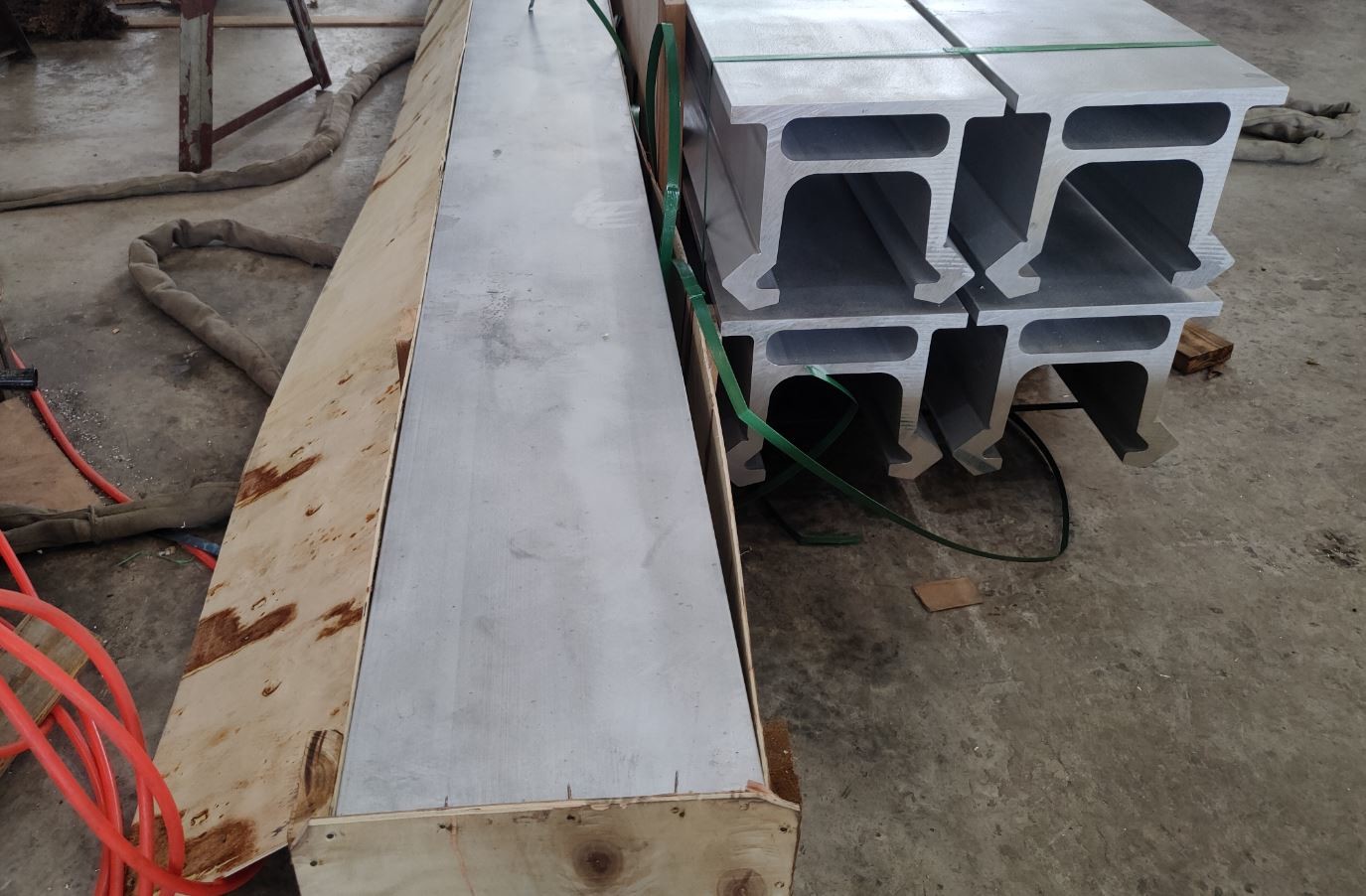

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 334cm X45cm X45 cm
